Duramax 10.5 x 10.5 Woodbridge Plus w/ Foundation 40224
Professional Local Installation Available
Note from the owner: Want to skip the setup process? For those of you who would rather hire someone to handle the assembly, We know a guy! We recommend AssemblyHelp for reliable, nationwide home shed installation services across the United States.
Simply click their logo below to visit their booking page, where you can instantly input your zip code to verify local coverage, check regional rates, and schedule a certified installer to complete your setup.
Product Description
Quick Specifications & Capabilities
-

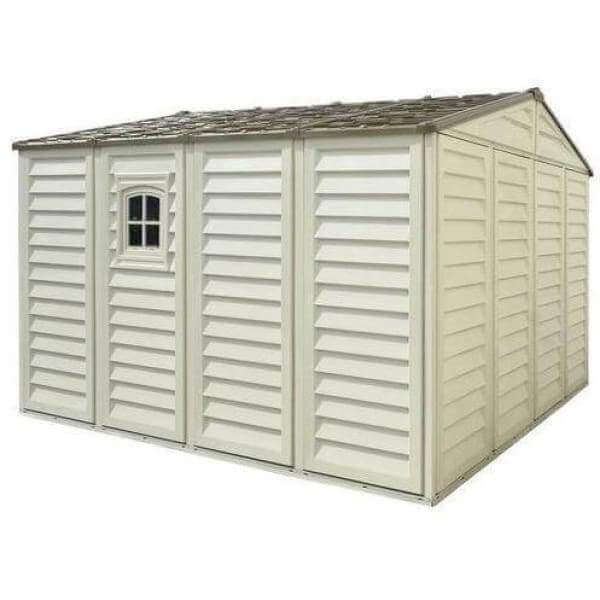

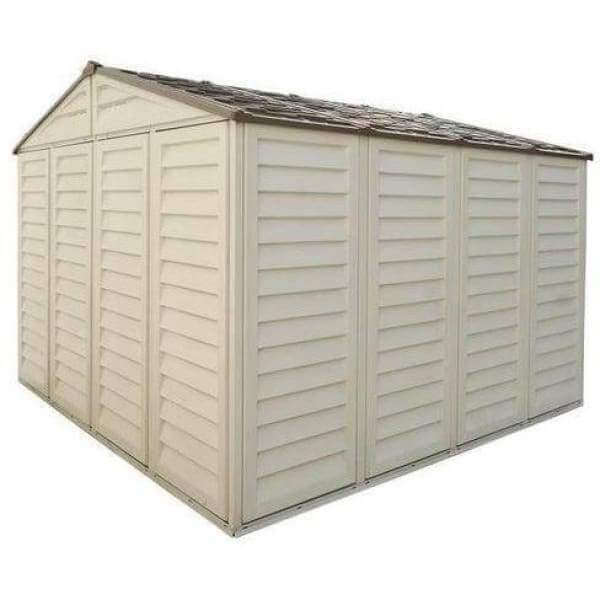

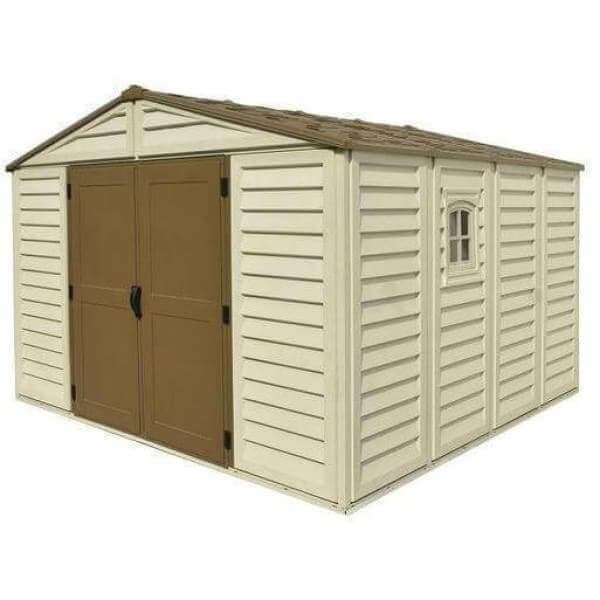

Product Name: Duramax 10.5' x 10.5' Woodbridge Plus Vinyl Storage Shed
-
Model / SKU: 40224
-
Footprint: Extra-Large 10.5' x 10.5' Square Backyard Footprint (Exterior: 127.9" W x 128.3" D x 91.8" H)
-
Foundation Structure: Heavy-Duty Metal Floor Foundation Grid Framing Kit Included (Wood Overlay Not Included)
-
Access Configuration: Massive Front Double Entry Doors (61" W x 71" H) with Padlockable Handles
-
Natural Lighting & Ventilation: Includes 1 Built-In Shatterproof Window and Slotted Gable Ventilation Slits
-
Weather Protection: Steel-Reinforced Frame Supporting 20 lbs/sq. ft. Winter Snow Load

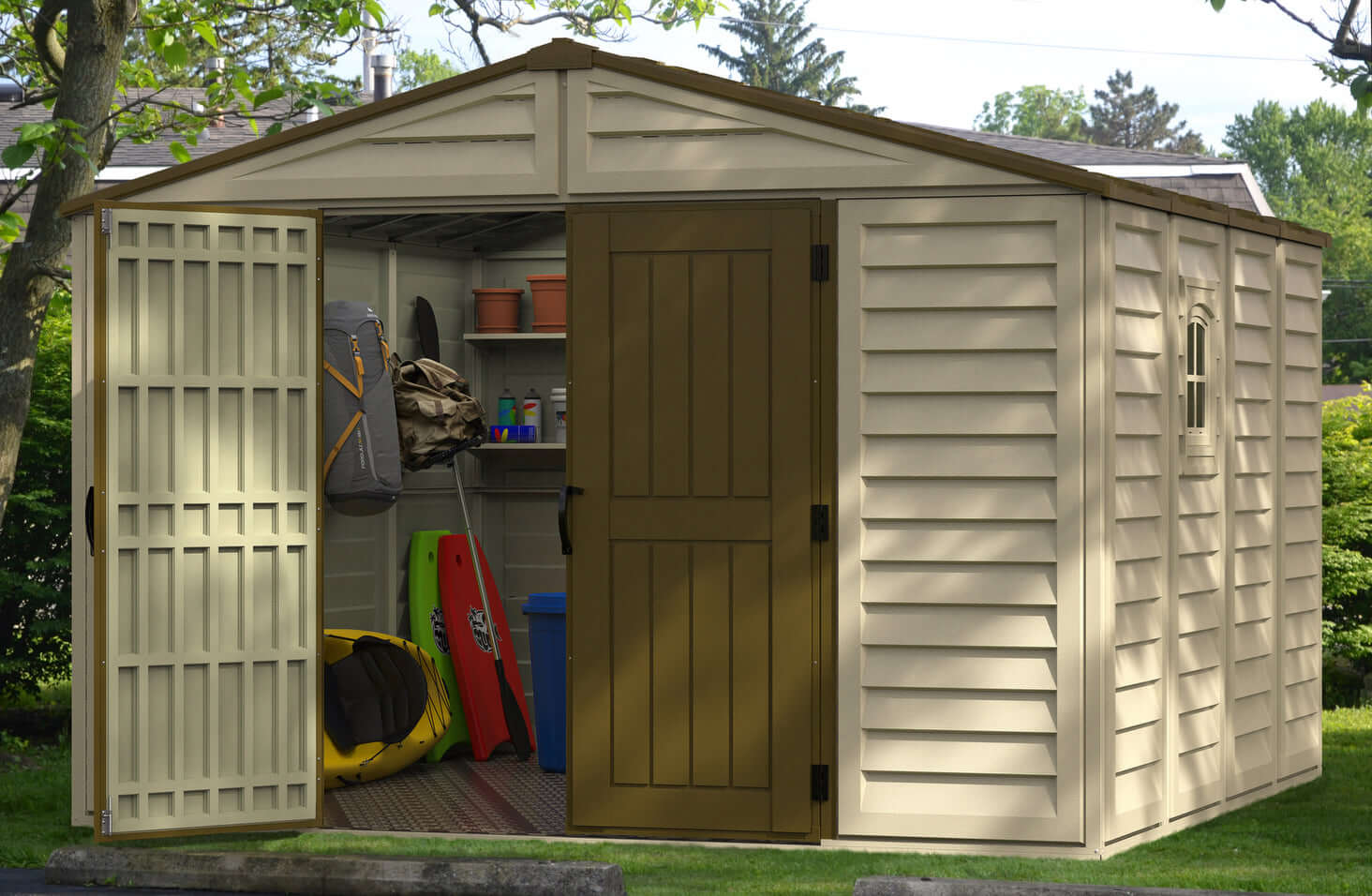

Maximize your backyard storage potential, protect your high-value lawn equipment, and clear out garage clutter with the massive, high-capacity Duramax 10.5 x 10.5 Woodbridge Plus w/ Foundation (SKU: 40224). Explicitly engineered to provide the ultimate full-scale organization system for large properties, this heavy-duty square footprint storage solution delivers an incredible amount of clearance for riding lawn mowers, ATVs, workshop benches, and extensive seasonal gear without compromising your yard's aesthetics. The Woodbridge Plus stands as the ultimate, zero-maintenance alternative to traditional wood or rusting metal backyard buildings.
Unlike cheap plastic storage structures that warp, crack, and fade over time, the Duramax 40224 yard shed is constructed using thick, fire-retardant premium vinyl resin panels. These high-grade cladding sections are structurally anchored by a hot-dipped galvanized steel interior grid consisting of heavy-duty columns, beams, and roof trusses. This hybrid engineering guarantees that your storage building will never rust, dent, rot, warp, peel, fade, or support mildew growth, while providing a completely safe space to store flammable items like lawnmowers and fuel canisters.
Premium Structural Engineering & Design Benefits
-
Zero-Maintenance Architectural Build: High-quality vinyl resin panels require absolutely zero painting, staining, sanding, or seasonal weather stripping. Simply spray down with a garden hose to preserve its clean exterior appearance.
-

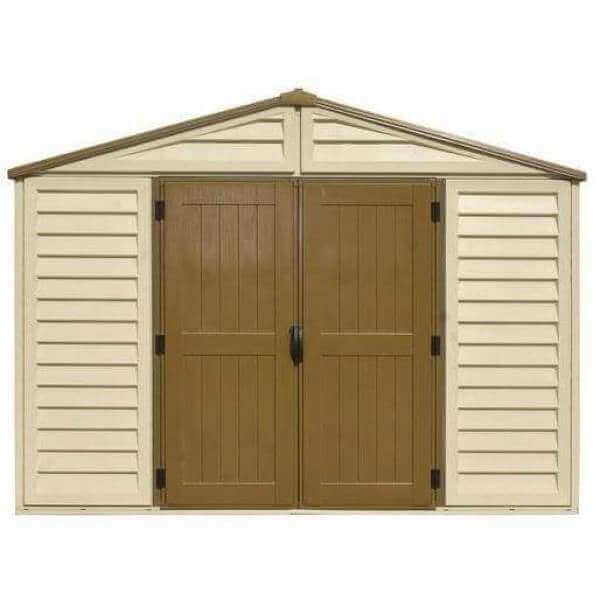

Massive Double Door Walk-In Clearance: Features extra-wide front entry double doors spanning a full 61 inches wide and 71 inches tall, allowing you to easily roll in wide riding mowers, store large utility equipment, or carry bulky storage bins without crouching. Includes a heavy-duty handle layout with built-in padlock eyes.
-
Natural Lighting & Enhanced Air Circulation: Outfitted with 1 clean, integrated shatterproof side window that lets in beautiful natural light, paired with slotted ventilation grids in the gable fascia that maximize airflow to reduce heat and prevent stagnant moisture build-up.
-
Heavy-Duty Galvanized Foundation Framing: Comes standard with a structural steel floor grid kit, ensuring a perfectly stable, level foundation base when completed with your choice of exterior-grade plywood or a solid concrete pad.
-
Certified Superior Fire Safety: Built utilizing advanced, structurally reinforced vinyl compounds that are highly flame-retardant, providing a much safer storage environment for motorized equipment and strict safety compliance close to residential structures.
Precise Technical Dimensions
-
Exterior Dimensions (Roof Edge to Edge): 127.9" W x 128.3" D x 91.8" H
-
Front Main Door Opening Clearance: 61" W x 71" H
-
Wall Cladding Material: Fire-Retardant Premium Vinyl Resin
-
Internal Structural Framework: Hot-Dipped Galvanized Steel Profiles
-
Manufacturer Warranty: Duramax 15-Year Limited Warranty
Specifications/Warranty
- Exterior Width w/ Overhang : 127.9"
- Exterior Depthth w/ Overhang : 128.3"
- Exterior Height: 91.8"
- Base Width: 125.5"
- Base Depth: 125.5"
- Interior Width: 123.3"
- Interior Depth: 123.3"
- Sidewall Height: 73"
- Weight: 370 lbs
Duramax 15 Year Limited Warranty
U.S. Polymers Inc. will send a replacement part free of charge, in the event of material defects and or workmanship for a period of fifteen years from the date of purchase. This warranty is extended only to the original purchaser. A purchase receipt or other proof of date of original purchase will be required before warranty service is rendered. In no event shall US Polymers Inc. pay the cost of flooring, labor, installation or any other costs related thereto.
This warranty only covers failures due to defects in material or workmanship which occurs during normal use and does not extend to color change arising due to normal weathering or to damage resulting from misuse or neglect, commercial use, failure to follow assembly instructions and the owner’s manual (including proper anchoring of the shed), painting, forces of nature and other causes which are beyond our control.
Claims under this warranty must be made within the warranty period by calling 1-800-483-4674 or mail in a dated sales slip and clear photograph of the part to:
U.S. Polymers, Inc.
1057 S. Vail Ave.
Montebello, CA 90640
We reserve the right to discontinue or change components. If a component has been discontinued or is not available, U.S. Polymers, Inc. reserves the right to substitute a component of equal quality as may be compatible.
Limits and Exclusions
There are no express warranties except as listed above. The warrantor shall not be liable for incidental or consequential damages resulting from the use of this product, or arising out of any breach of this warranty. All express warranties are limited to the warranty period set forth above. Some states do not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to country.
WARNING: This product may expose you to chemicals including which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.p65warningsca.gov/furniture.
Warranty/Tech Drawing
Diagram/Technical Drawing

Great reasons to buy from us:
- Free Shipping – We Pay The Tax
- BBB Accredited Business
- 30-Day Return Policy
- Damaged? We Replace It Free
- Professional Installation Available
- US-Based Customer Support
- Ships Within 5 Business Days

Questions & Answers
Have a Question?
-
What is the shipping weight ?
Approx.
368 pounds -
Do you know when this will be instock ?
No word at this time. Keep watching the website and/or send us an email with contact info and the shed you are interested in and we will add you to our call list.
-
Is this shed available in Pittsburgh, PA. Thanks 😊
We have no date at this time. We suggest you check back on the website often as we update it daily. Also, send a separate email with your contact info, the state you live in and the shed name/number and we will add you to our call list.
-
Is this available in nj
The product page lists the current availability. We update daily.
-
IS THIS ITEM AVAILABLE FOR HONOLUU, HAWAII
No, at this time we only ship to the contiguous 48 states.
-
Is this shed available in Springfield Ohio
Not at this time. Please refer back to the website periodically to check for availability.
-
I have a large 15 x 12 concrete pad so can I anchor the 10.5 x 10.5 shed down without installing the foundation kit.
Yes you can, just drill down through the base of the shed directly into the concrete with tap cons.
-
Can I order a new panel and doors
If you need parts tou should contact support@USPolymersinc.com
We only sell complete building kits
