Duramax 10.5' x 5.0' Woodbridge with Foundation 00283
Professional Local Installation Available
Note from the owner: Want to skip the setup process? For those of you who would rather hire someone to handle the assembly, we know a guy! We highly recommend Assembly Help for reliable, nationwide home shed installation services across the United States. Simply click their logo below to visit their booking page, where you can instantly input your zip code to verify local coverage, check regional rates, and schedule a certified installer to complete your setup. Like with any big project we suggest you get more than one price quote before proceeding. If you want suggestions on how to find other assemblers feel free to read our FAQ section or email us.
Product Description
Quick Specifications & Capabilities
-
Product Name: Duramax 10.5' x 5' Woodbridge Vinyl Storage Shed
-
Model / SKU: 00283
-
Footprint: Slim & Wide 10.5' x 5' Backyard Footprint (Exterior: 125.2" W x 63" D x 86.2" H)
-
Foundation Structure: Heavy-Duty Metal Floor Foundation Grid Framing Kit Included (Wood Overlay Not Included)
-
Access Configuration: Massive Front Double Entry Doors (61" W x 71" H) with Padlockable Handles
-
Natural Lighting & Ventilation: Slotted Gable Ventilation Slits for High-Velocity Cross-Airflow
-
Weather Protection: Steel-Reinforced Frame Supporting 20 lbs/sq. ft. Winter Snow Load

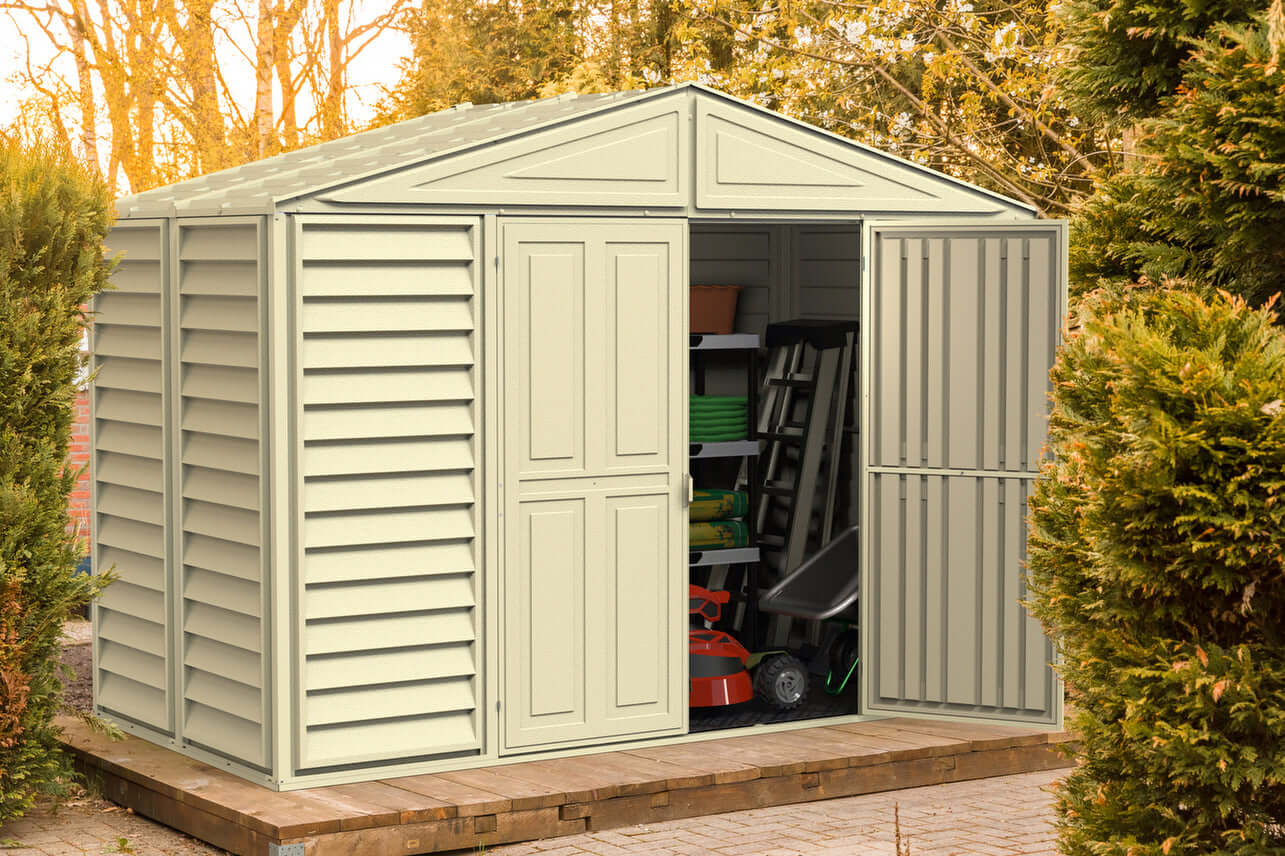

Maximize your backyard organization potential, protect your high-value lawn equipment, and clear out garage clutter with the space-saving, wide-profile Duramax 10.5' x 5.0' Woodbridge with Foundation (SKU: 00283). Explicitly engineered to offer a shallow, wide footprint that hugs fences, side yards, or narrow property pathways perfectly, this heavy-duty vinyl storage building delivers exceptional walk-in vertical storage volume. The Woodbridge series stands as the ultimate, zero-maintenance alternative to traditional wood or rusting metal backyard structures.

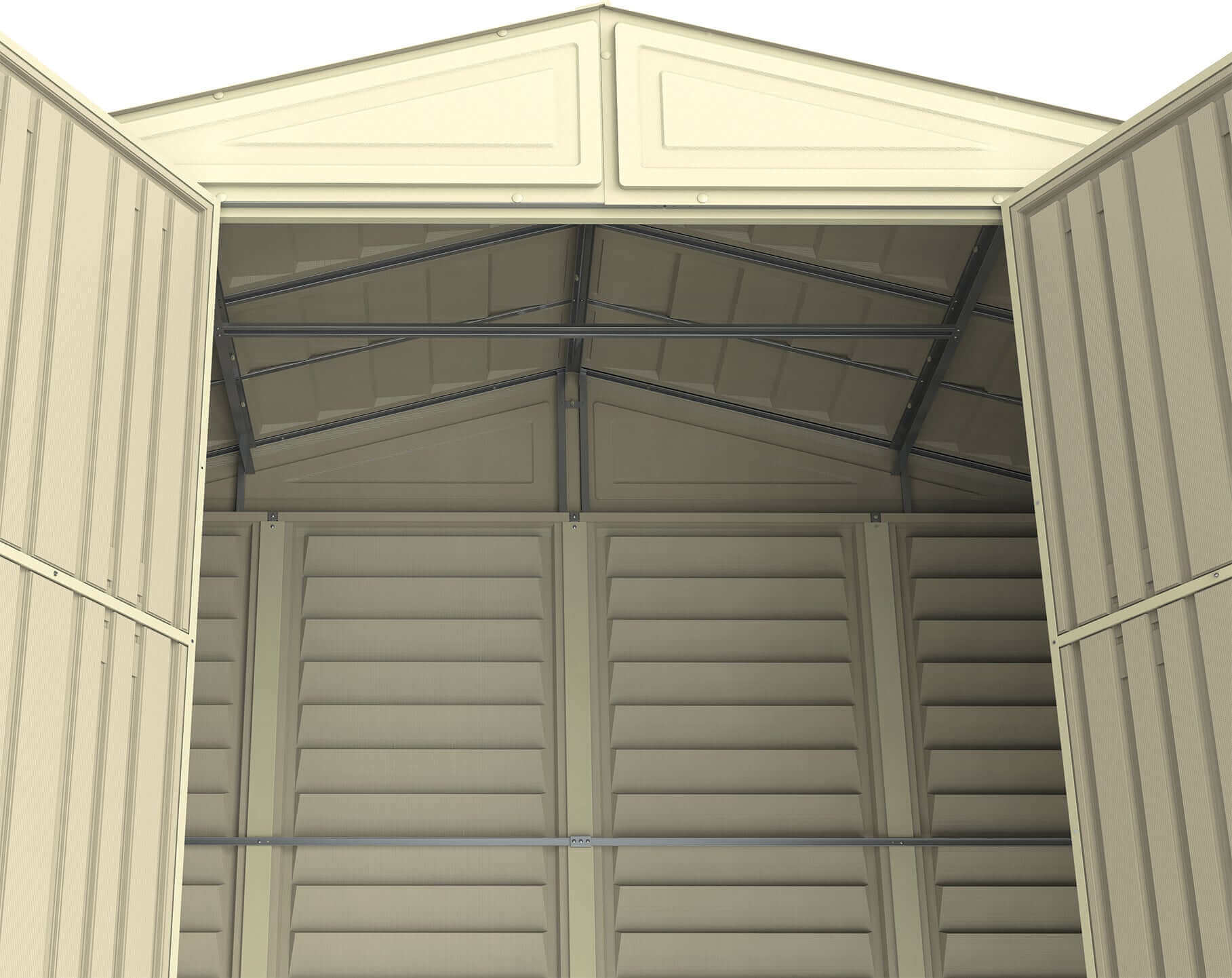

Unlike cheap plastic storage buildings that warp, crack, and fade over time, the Duramax 00283 yard shed is constructed using thick, fire-retardant premium vinyl resin panels. These high-grade cladding sections are structurally anchored by a hot-dipped galvanized steel interior grid consisting of heavy-duty columns, beams, and roof trusses. This hybrid engineering guarantees that your storage building will never rust, dent, rot, warp, peel, fade, or support mildew growth, while providing a completely safe space to store flammable items like lawnmowers and fuel canisters.
Premium Structural Engineering & Design Benefits
-
Zero-Maintenance Architectural Build: High-quality vinyl resin panels require absolutely zero painting, staining, sanding, or seasonal weather stripping. Simply spray down with a garden hose to preserve its clean exterior appearance.
-

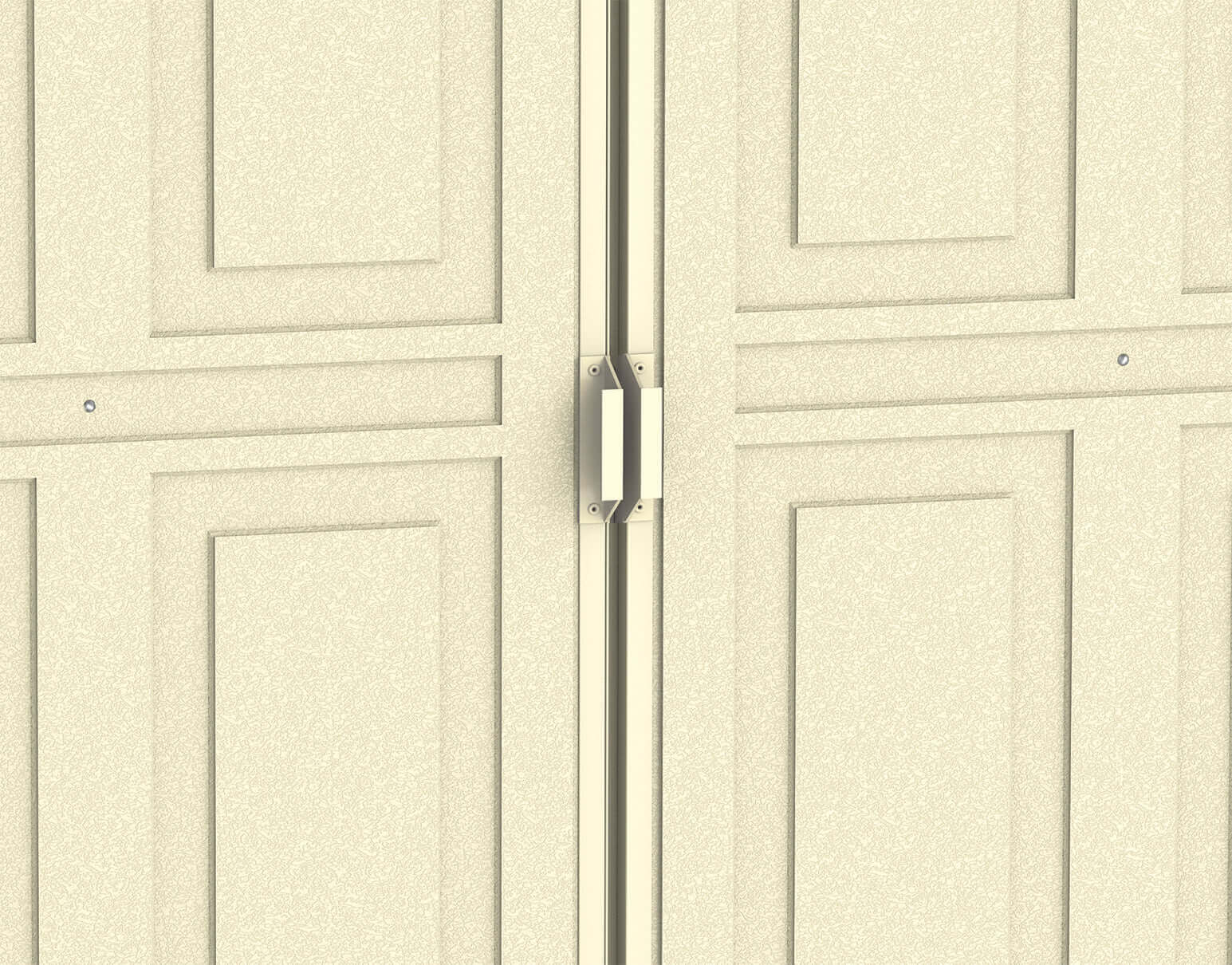

Massive Double Door Walk-In Clearance: Features extra-wide front entry double doors spanning a full 61 inches wide and 71 inches tall, allowing you to easily roll in wide push mowers, store large utility equipment, or roll in bicycles without crouching. Includes a heavy-duty handle layout with built-in padlock eyes.
-
Slim-Line Deep Walkway Optimization: The shallow 5-foot depth profile combined with the extra-wide 10.5-foot width provides an ideal layout for long tool arrays, extension ladders, and shelving units where items remain highly visible and instantly accessible.
-

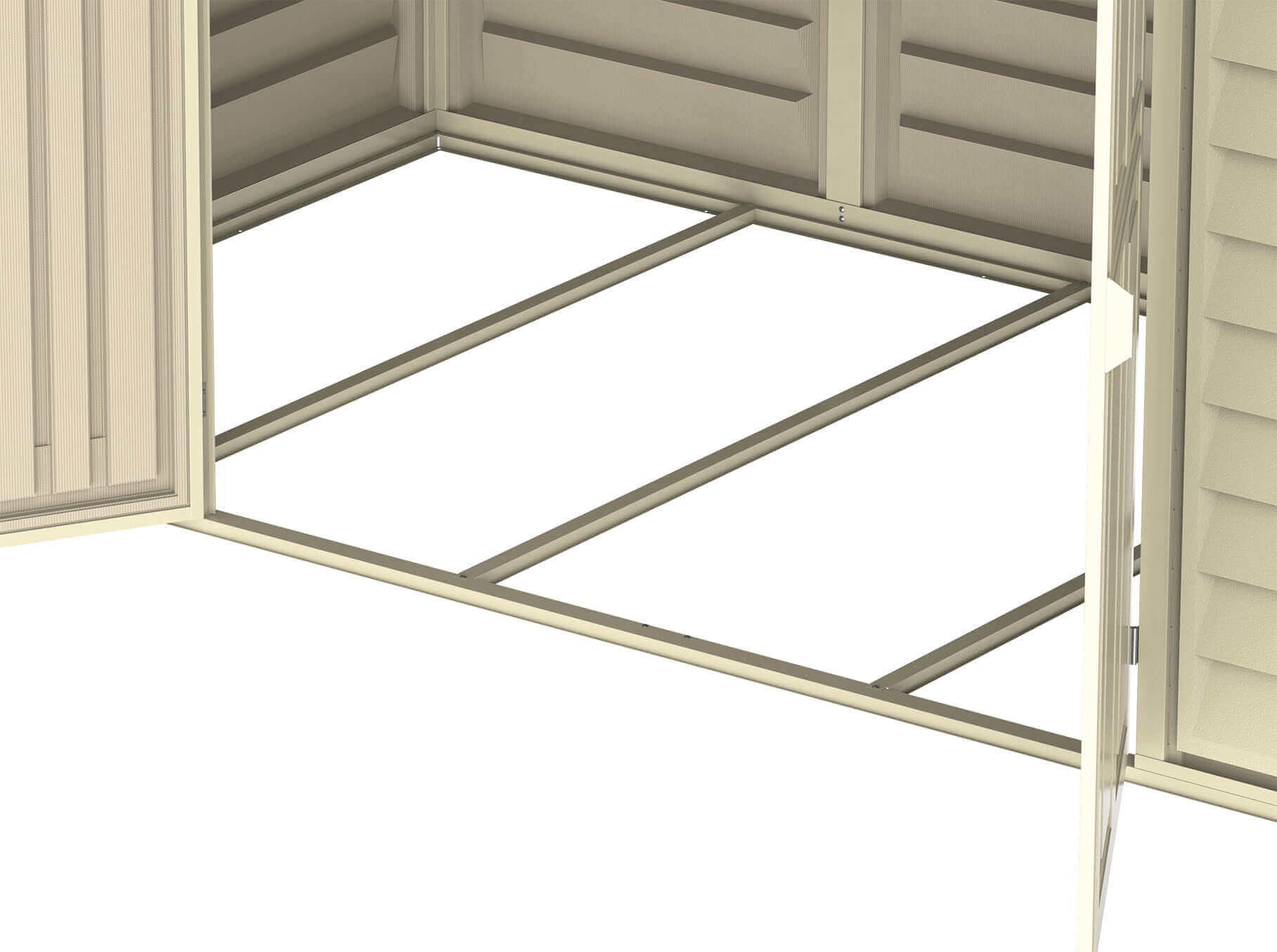

Heavy-Duty Galvanized Foundation Framing: Comes standard with a structural steel floor grid kit, ensuring a perfectly stable, level foundation base when completed with your choice of exterior-grade plywood or a solid concrete pad.
-
Certified Superior Fire Safety: Built utilizing advanced, structurally reinforced vinyl compounds that are highly flame-retardant, providing a much safer storage environment for motorized equipment and strict safety compliance close to residential structures.
Precise Technical Dimensions
-
Exterior Dimensions (Roof Edge to Edge): 125.2" W x 63" D x 86.2" H
-
Front Main Door Opening Clearance: 61" W x 71" H
-
Wall Cladding Material: Fire-Retardant Premium Vinyl Resin
-
Internal Structural Framework: Hot-Dipped Galvanized Steel Profiles
-
Manufacturer Warranty: Duramax 15-Year Limited Warranty
Specifications/Warranty
- Exterior Dimensions: 125.2" Wide x 63" Deep x 86.2"H
- Shipping Dimensions: 78" x 42" x 12"
- Door Opening: 60.6" Wide x 71.5" D
- Weight: 250 lbs
Duramax 15-Year Limited Warranty
U.S. Polymers Inc. will send a replacement part free of charge, in the event of material defects and or workmanship for a period of fifteen years from the date of purchase. This warranty is extended only to the original purchaser. A purchase receipt or other proof of date of original purchase will be required before warranty service is rendered. In no event shall US Polymers Inc. pay the cost of flooring, labor, installation, or any other costs related thereto.
This warranty only covers failures due to defects in material or workmanship that occur during normal use and does not extend to color change arising due to normal weathering or to damage resulting from misuse or neglect, commercial use, failure to follow assembly instructions, and the owner’s manual (including proper anchoring of the shed), painting, forces of nature and other causes which are beyond our control.
Claims under this warranty must be made within the warranty period by calling 1-800-483-4674 or mailing in a dated sales slip and clear photograph of the part to:
U.S. Polymers, Inc.
1057 S. Vail Ave.
Montebello, CA 90640
We reserve the right to discontinue or change components. If a component has been discontinued or is not available, U.S. Polymers, Inc. reserves the right to substitute a component of equal quality as may be compatible.
Limits and Exclusions
There are no express warranties except as listed above. The warrantor shall not be liable for incidental or consequential damages resulting from the use of this product, or arising out of any breach of this warranty. All express warranties are limited to the warranty period set forth above. Some states do not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to country.
WARNING: This product may expose you to chemicals including which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.p65warningsca.gov/furniture.
Tech Drawing/ Assembly PDF
Diagram/Technical Drawing
Great reasons to buy from us:

Questions & Answers
Have a Question?
-
when might you have 10x5 00283 Woodbridge sheds available?
The California Warehouse is expecting some around May 31st. IF, they show up then they will be available on our website as soon as they show in stock on the inventory sheet. The California warehouse ships to all states West of the Mississippi. No word right now on states East of the river.
-
Is there a way to use this shed without a floor? I want to put it directly on a concrete slab. Also, can you attach storage items to the back wall, such as surfboard racks? Or is it not strong enough?
The foundation kit is not a floor. it functions similiar to the floor joists in a house constructed on a block foundation. It can be built without, but the surface should be smooth and level. We sell shelf kits for the vinyl sheds.
-
is the foundation kit for pouring concrete into it?
No, it is not.
The foundation kit is similar to the floor joists when constrctuing a new home. The joists sit on top of the foundation normally made out of block and then the house is assembled on top of the joists. -
I’m not able to put this together myself. Are there professional installers available for this product in my area? I live in Katy, Texas.
I understand it can be difficult for some people to assemble. We are unable to maintain alist of installers nationwide, but it should not be hard to find a handy man there locally to do it. Basic hand tools are all that is required. It is easier if two people are doing it.
-
In what colors is the shed available
The shed is available in Ivory color.
-
Is there any type of wind load rating on this shed ?
No, they do not carry a wind rating.
