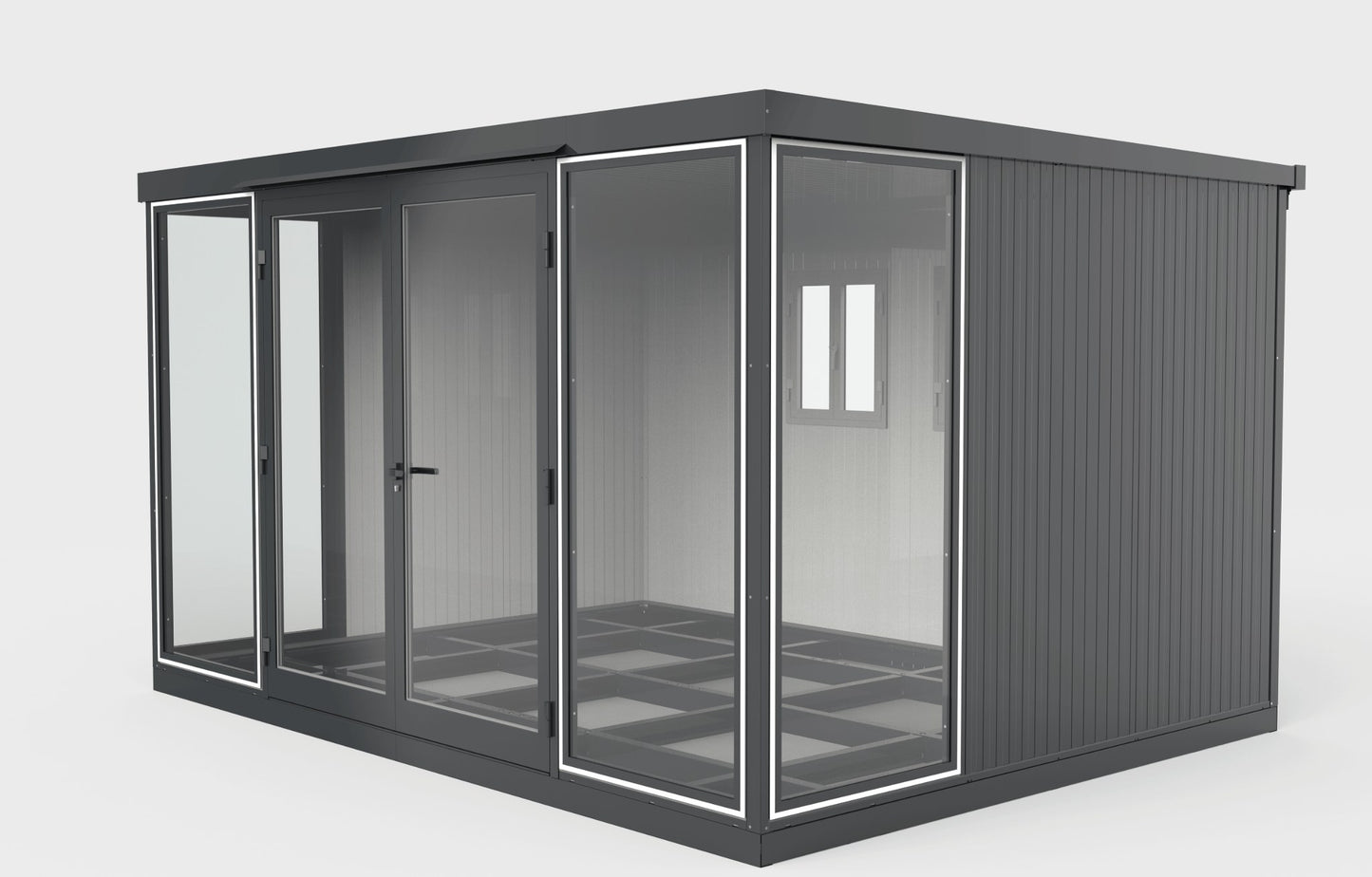

Duramax 13' x 10' Insulated Glass Building 32003
Professional Local Installation Available
Note from the owner: Want to skip the setup process? For those of you who would rather hire someone to handle the assembly, We know a guy! We recommend AssemblyHelp for reliable, nationwide home shed installation services across the United States. Simply click their logo below to visit their booking page, where you can instantly input your zip code to verify local coverage, check regional rates, and schedule a certified installer to complete your setup.
Product Description
Quick Specifications & Capabilities
- Premium Living Space: 130 sq. ft. footprint (Exterior: 162.3" W x 126.6" D x 94.8" H)
- Advanced Insulation: 25-gauge galvanized steel roof (2" PU foam) and wall panels (1" PU foam).
- Stunning Views & Security: 1/4" tempered glass panels with powder-coated aluminum framing and a heavy-duty safety lock.
- All-Weather Strength: Engineered for a robust 25 lbs/sq ft snow load and integrated gutter system.

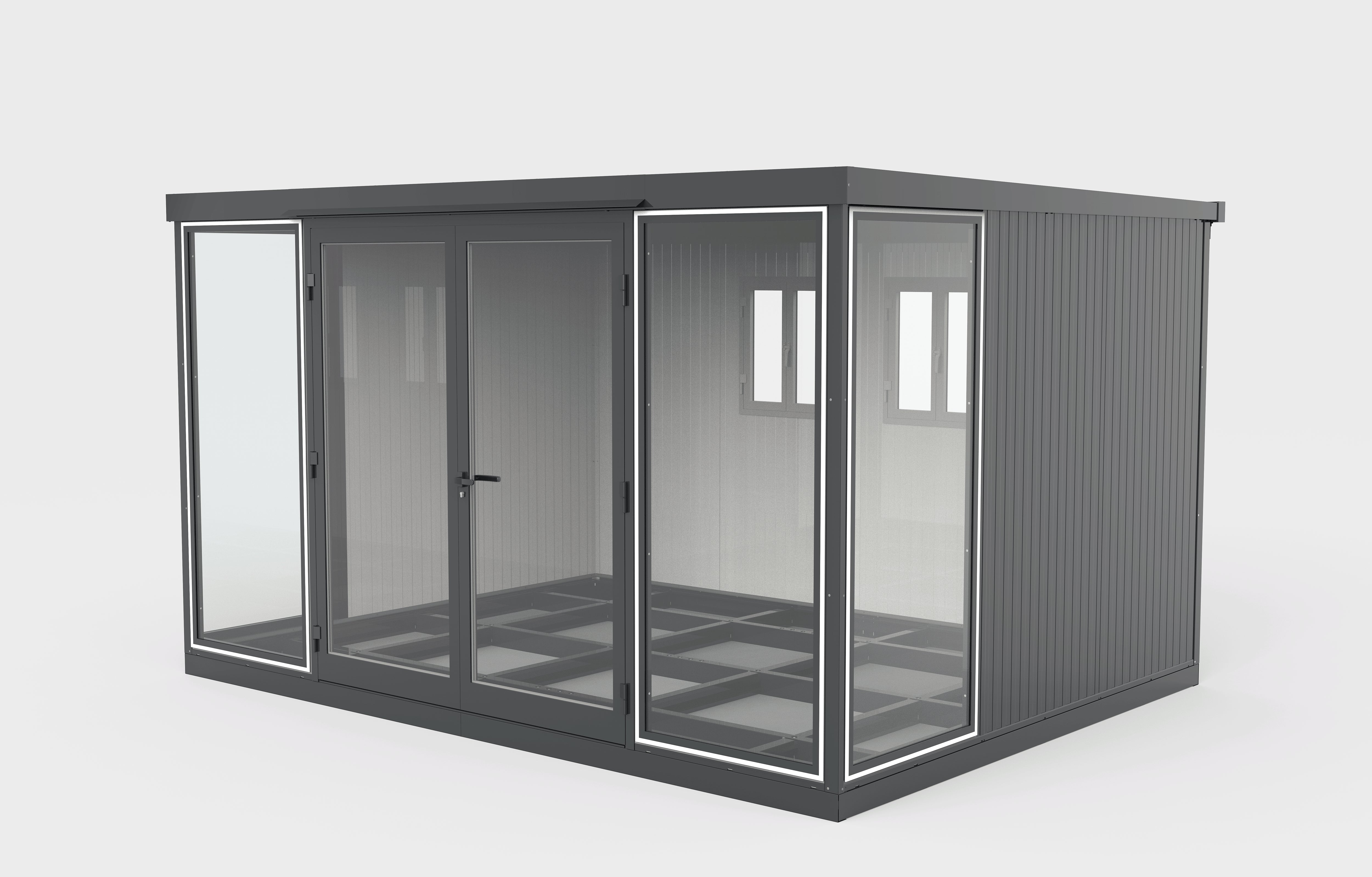

Transform your backyard with the highly versatile and modern Duramax 13' x 10' Insulated Garden Glass Room 32003. Whether you need an elegant home office, a peaceful backyard studio, a premium children's playroom, or an Accessory Dwelling Unit (ADU) guest suite, this high-end insulated glass building adapts to your lifestyle. Built with a tough 4" steel foundation frame, it features thick, double-walled steel panels packed with high-density polyurethane (PU) foam insulation to ensure year-round climate control. The crystal-clear 1/4" tempered glass walls are nestled in sleek, rust-resistant anthracite aluminum frames, flooding your space with natural light. Designed for zero maintenance, it never needs painting, resists fading, and withstands harsh weather while maintaining its clean, modern aesthetic.
Features
- Sturdy steel walls insulated with high-density PU foam for excellent climate control
- 1/4" tempered glass panels with anthracite aluminum powder-coated frames
- Includes a robust 4" steel foundation frame kit (finish with plywood or concrete)

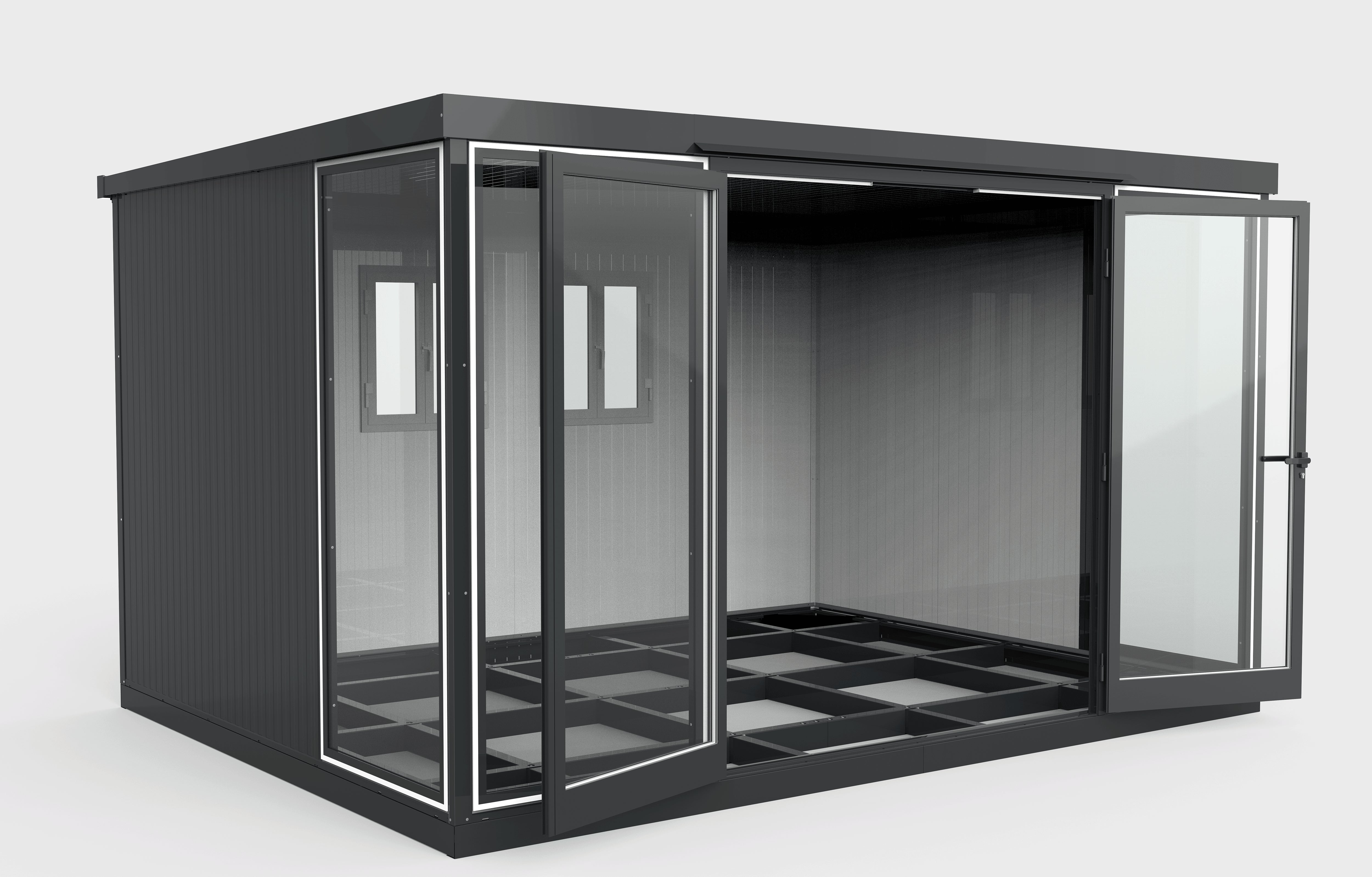

- Two outward-swinging tempered glass double doors with built-in safety lock
- Sloped, angular roof design with corner gutter downspouts to prevent water pooling
- Engineered to easily mount air conditioning or heating units
- Tongue-and-groove wall panel system for straightforward, bolt-together assembly
- Backed by a Duramax 7-Year Limited Warranty
IMPORTANT: All customers must inspect shipments upon arrival for damage. The freight companies give us a 48 hour window from delivery to start a damage claim. Please notify support@duramaxbp.com immediately and include photos if you discover any delivery damage.
Specifications & Warranty
- Approximate Size (ft.): 13’ x 10 1/2’
- Storage Area: 130 sq. ft. / 1,039 cu. ft.
- Exterior Base Dimensions: 159.1" W x 120.59" D
- Exterior Roof-to-Edge Dimensions: 162.3" W x 126.65" D x 94.8" H
- Interior Dimensions: 156.3" W x 118" D x 86" H
- Door Opening: 70" W x 82.1" H
- Panel & Trim Color: Anthracite / Anthracite Trim
- Warranty: Duramax 7-Year Limited Warranty
WARNING: This product may expose you to chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov/furniture.
Tech Drawing/ Assembly PDF
For a comprehensive view of the numbered parts and assembly sequence, you can access the Official Duramax 32003 Assembly Manual.
Watch the Duramax Glass Building Installation Video for a step-by-step walkthrough.
Diagram/Technical Drawing
