Duramax 16' x 10' Flat Roof Insulated Building 30852
Note from the owner:
**Professional Local Installation Available**
Want to skip the setup process? For those of you who would rather hire someone to handle the assembly, we know a guy! We highly recommend Assembly Help for reliable, nationwide home shed installation services across the United States. Simply click their logo below to visit their booking page, where you can instantly input your zip code to verify local coverage, check regional rates, and schedule a certified installer to complete your setup. Like with any big project we suggest you get more than one price quote before proceeding. If you want suggestions on how to find other assemblers feel free to read our FAQ section or email us.
Product Description:
Quick Specifications & Capabilities
-
Product Name: Duramax 16' x 10' Insulated Flat Roof Garden Building
-
Model / SKU: 30852
-
Footprint: Premium 16' x 10' Backyard Footprint (160 Sq. Ft. / 1,040 Cu. Ft. Capacity)
-
Wall & Roof Construction: Heavy-Duty 25-Gauge Steel Panels with Thick Integrated CFC-Free Polyurethane Insulation
-
Foundation Structure: Heavy-Duty Metal Floor Foundation Grid Framing Kit Included (Concrete NOT Required)
-
Security Infrastructure: Reversible Heavy-Duty Door Equipped with Secure Dead Bolt Lock System
-
Load Capacity: Elite Structural Engineering Supporting an Extreme 30 lbs/sq. ft. Winter Snow Load
Establish a premium commercial-grade workspace, backyard tiny home, luxury executive office, or climate-controlled hobby studio with the max-insulated Duramax 16' x 10' Flat Roof Building (SKU: 30852). Specifically engineered to function as a fully insulated standalone Accessory Dwelling Unit (ADU) or high-capacity outdoor workshop, this heavy-duty prefabricated building delivers an incredible 1,040 cubic feet of walk-in storage volume. It stands as the ultimate, zero-maintenance alternative to traditional, expensive brick-and-mortar construction or custom wood framing.
Unlike standard thin-walled tin sheds that offer no climate protection, the Duramax 30852 Insulated Building features pre-painted galvanized inner and outer steel walls structurally fused with thick, fire-retardant polyurethane insulation. This advanced thermal composite technology drastically limits heat gain during scorching summer months and retains heat during freezing winters, ensuring a comfortable interior climate ideal for all-weather conditions. This rigid structural frame easily supports mounting a split-system heating and cooling unit.
Premium Structural Engineering & Design Benefits
-
Modern Flat Roof Design: Features a clean, low-profile architectural flat roof slope that provides a sleek, contemporary backyard aesthetic while meeting strict local neighborhood height restrictions.
-
All-Weather Thermal & Acoustic Performance: Thick, high-density polyurethane insulation provides outstanding thermal resistance and superior acoustic sound-dampening, making it perfect for loud workshops or quiet backyard office work.
-
Heavy-Duty Metal Foundation Grid Included: Comes standard with an engineered metal floor foundation kit, allowing rapid structural construction on just about any flat, level surface without the strict necessity or high expense of pouring a solid concrete pad.
-
Customizable Layout & Deadbolt Security: Features a highly secure entry door outfitted with a heavy-duty deadbolt lock system that can be custom-configured on any side wall panel location during assembly to fit your specific yard layout.
-
Elite 30 lbs/sq. ft. Certified Snow Load: Built with one of the strongest do-it-yourself structural truss grids available on the consumer market, engineering-certified to withstand intense winter snow accumulation and high winds.
Precise Technical Dimensions
-
Exterior Footprint Base Dimensions: 188.4" L x 118.9" W x 94.5" H
-
Interior Clear Dimensions: 182.1" L x 112.6" W x 80.2" H
-
Door Clearance Dimensions: 36.2" W x 78.5" H
-
Expansion Capability: Fully compatible with Duramax 6-Foot Extension Kits (expandable on either side in 6 ft. increments)
-
Shipping Logistics: Safely crated in a secure dual-crate package designed for common carrier delivery (movable via pickup truck if necessary).
Specifications/Warranty
- Assembled Dimensions: 201.9"' W x 126.7" D x 92.1" H
- Door Measurements: 36.2" W x 82.7" H
- Warranty: 7-year warranty
WARNING: This product may expose you to chemicals including which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.p65warningsca.gov/furniture.
Tech Drawing/ Assembly PDF
Assembly PDF
Assembly Video for Insulated Buildings
Detailed Print
Diagram/Technical Drawing

Great reasons to buy from us:
- Free Shipping – We Pay The Tax
- BBB Accredited Business
- 30-Day Return Policy
- Damaged? We Replace It Free
- Professional Installation Available
- US-Based Customer Support
- Ships Within 5 Business Days

Questions & Answers
Have a Question?
-
So the floors are just spaced galvanized metal supports that the customer has to add a floor to? We have a 10’x16’ space. Also, I assume these units are 8’ tall? I forgot to check if the height is listed in the bldg description before I started writing this.

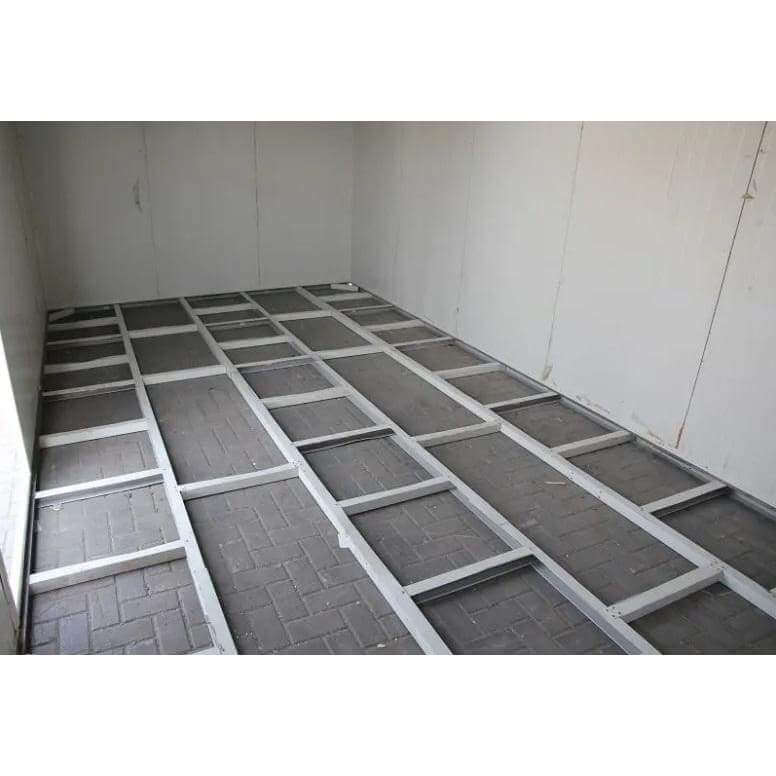

These buildings are advertised as having a metal foundation which is not a floor. The foundation kit, (steel gridwork) is similar to the floor joists of a house built on block crawlspace or basement. The house or in this case the insulated building is built up from there. The included assembly instructions show two different options for installing the floor near the end of the build process. There is an option for plywood or concrete depending on your needs.
